7.5KW Automatic Water Bottle Filling Machine 15000BPH 310mm Height

Name: 75KW Automatic Water Bottle Filling Machine 15000BPH 310mm Height
Brand: Aquatrin
Price: 15000 USD

China 7.5KW Automatic Water Bottle Filling Machine 15000BPH 310mm Height wholesale

Brand Name : Aquatrin

Model Number : CGF

Certification : CE ISO

Place of Origin : China

MOQ : 1unit

Price : USD15000-60000 1Set

Payment Terms : T/T

Supply Ability : 10units per month

Delivery Time : 45days

Packaging Details : wooden package

Feature : High Efficiency

Packaging Type : Bottles, CANS

Product name : mineral water filling plant

Usage : Beverage Packaging

Bottle type : PET Plastic Bottle

Contact Now

7.5KW Automatic Water Bottle Filling Machine 15000BPH 310mm Height

We can produce pure water ,mineral water, drinking water, soda water, flavored water , natural water ,spring water ,potable
 water, flavoured water. Depending on the different packages, we can divide it into two categories: bottled mineral water line(200ml-2000ml) and barreled mineral water line (1- 5 gallon water line). The following are the main types of bottles we have been exposed to in the past, from the most common plastic bottles, gallon drums to glass bottles and cans, and we all have a successful complete solution.

Detailed Images

Technical parameters:

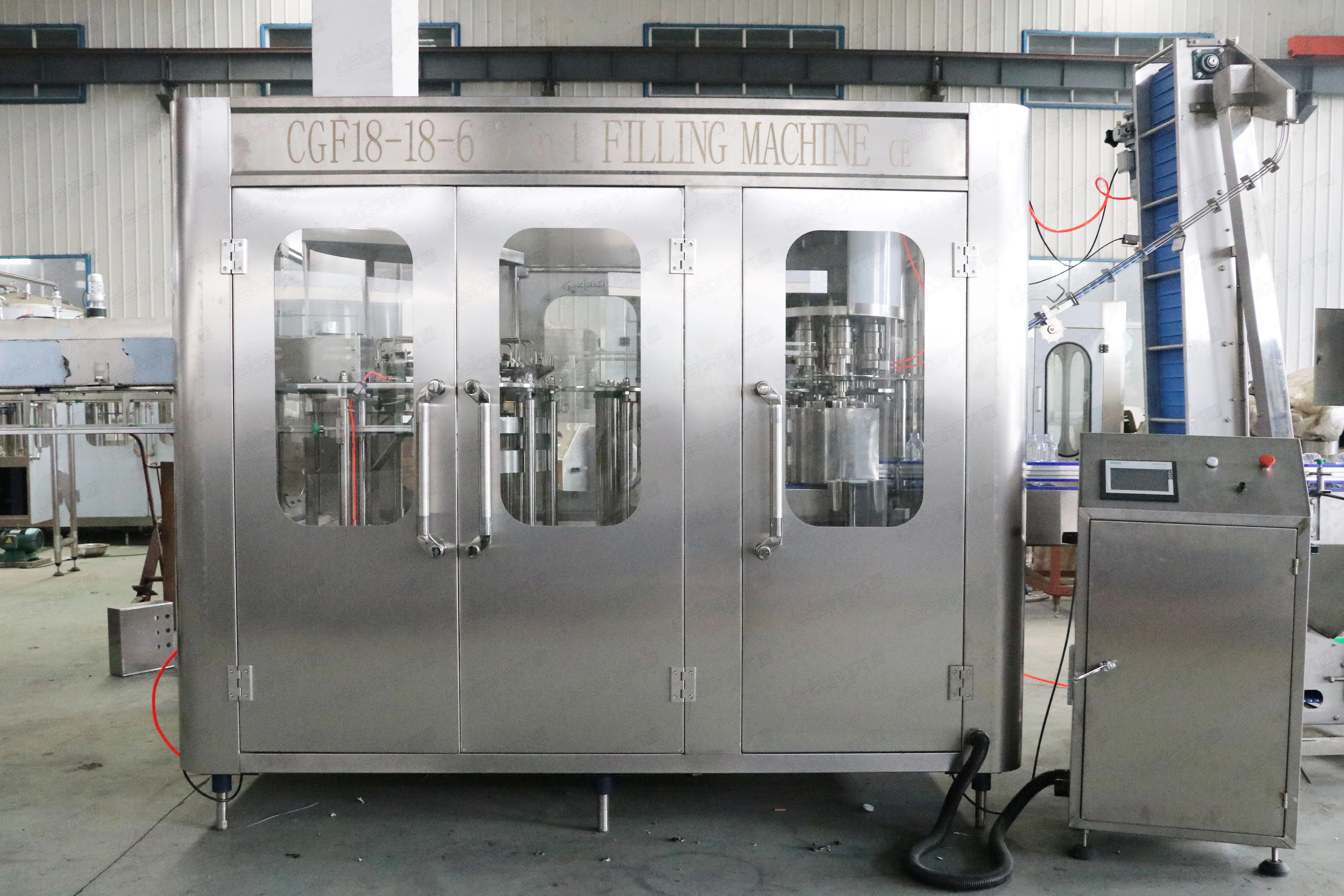

Mode	CGF14-12-5	CGF16-16-6	CGF18-18-6	CGF24-24-8	CGF32-32-10	CGF40-40-12	CGF50-50-15
Production capacity(B/H)	2000-3500	3500-5000	5000-7000	7000-12000	12000-15000	15000-20000	20000-24000
Suitable bottle shape	Circular or Square
Bottle diameter(mm)	Φ50-Φ95
Bottle height(mm)	150-310
Washing medium	Aseptic Water
Total power (kw)	2	3.5	4	5.5	7.5	11	15
Weight (kg)	2200	2800	3000	4500	6000	9000	15000
Overall dimensions(mm)	205015502200	240017502200	255018502200	300021502200	420027002400	470032002400	650033502400

Water washing part:

Rinsing gripper dial, separating water dial, water trough.
 Specially designed stainless steel bottle gripper does not contact the thread parts of the bottle neck,avoiding the second
 contamination.

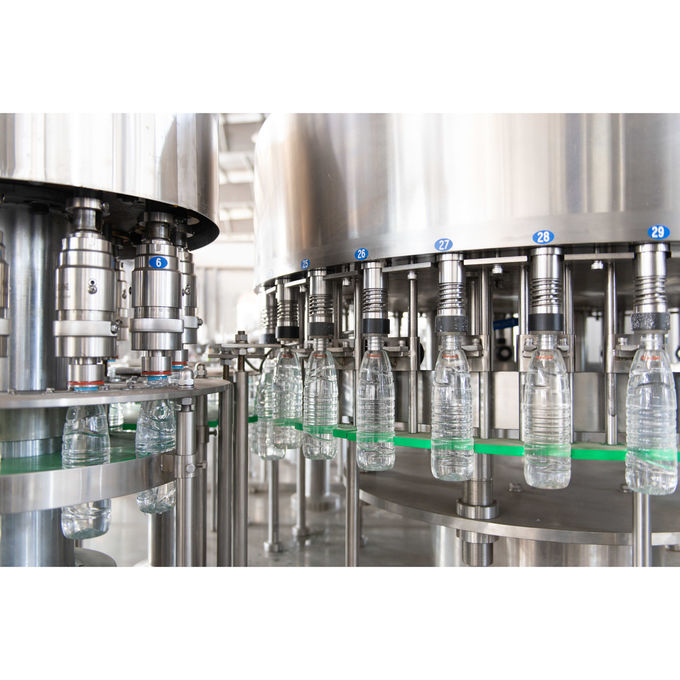

Water filling part:

Liquid tank, filling valves, controlling rings, upgrading cylinder.High speed and mass flow filling valve ensures the high filling
 speed and exact fluid level. Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic.

Capping part:

Screwing capper, cap sorter, falling cap guide.
 Capping head have itself scale. Easier adjust and count.

Detailed Images

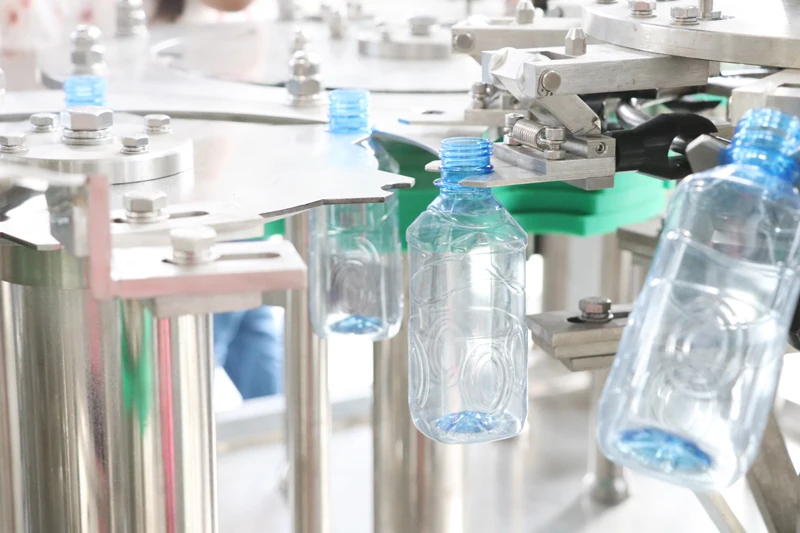

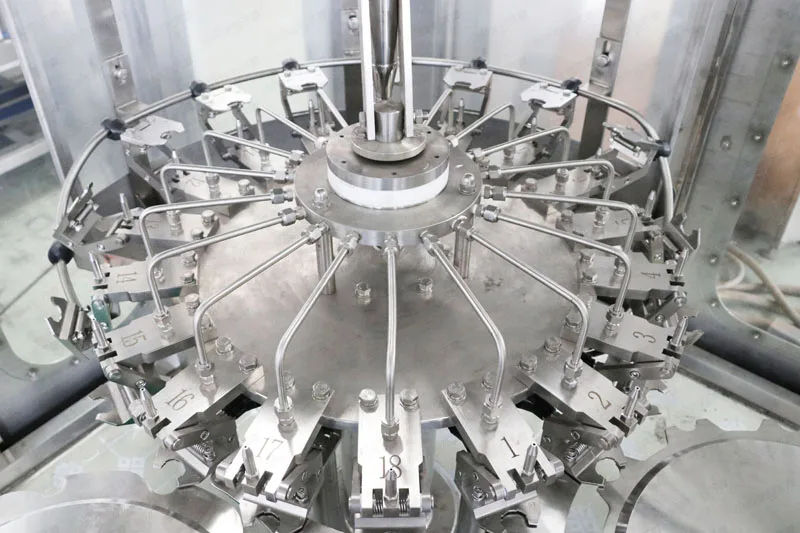

Rinsing Parts

Except the down framework, the transmission parts and some parts that must be made of special materials. Other spare parts are made of stainless steel 304.

 The gripper is made of stainless steel, the position where hold the bottleneck is also made of stainless steel, compared with the traditional rubber gripper, it is much hygiene, durable, and no quick-wear parts, the screw parts of the bottleneck can avoid being polluted by the rubber gripper.

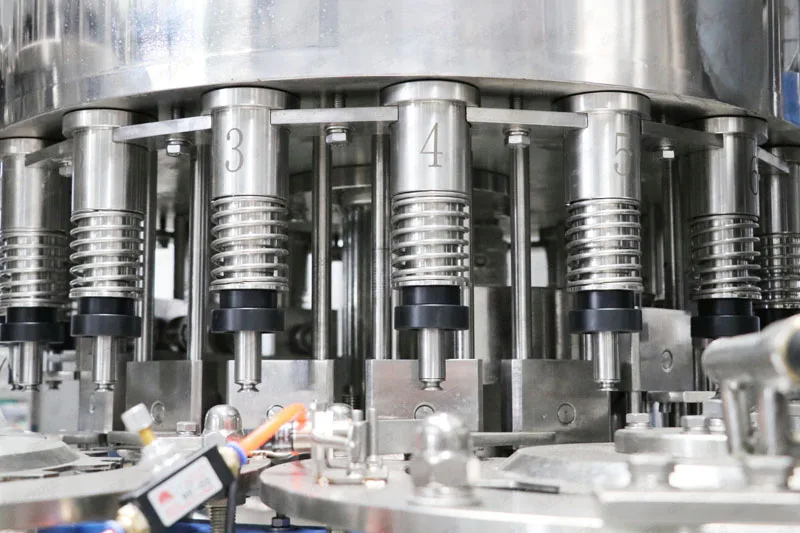

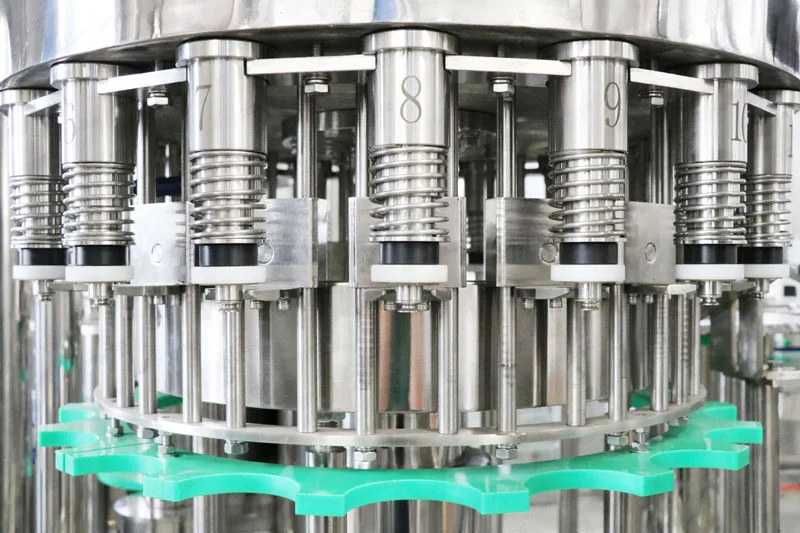

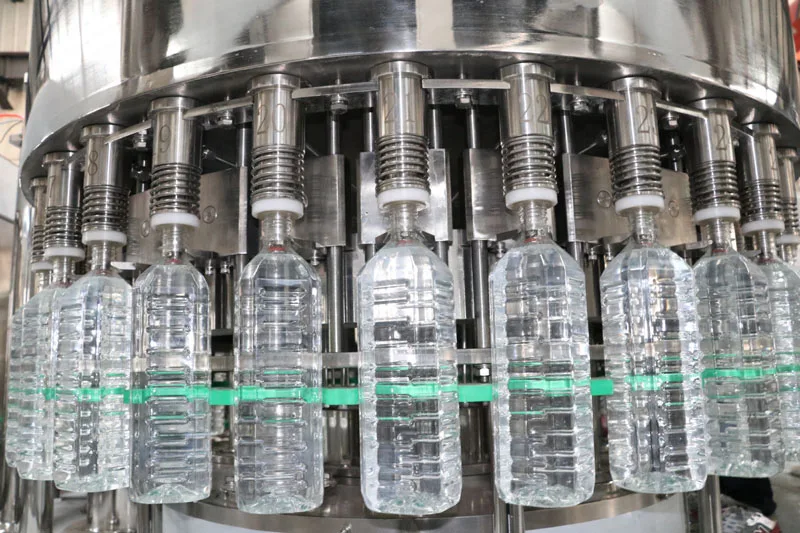

Filling parts

 The pressure mechanical valve is introduced the advanced foreign design with a fast filling speed, no hygiene corner pocket, a few sealing parts, and precise liquid level control. The whole valve is made of 304 stainless steel.

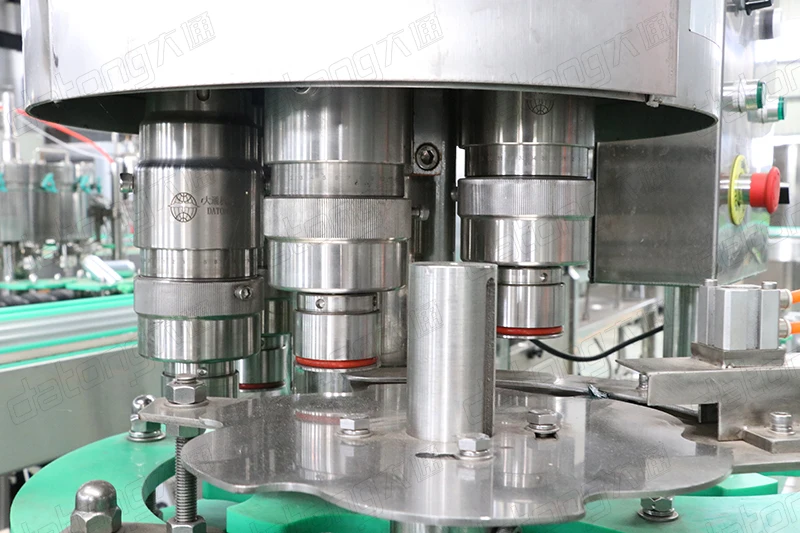

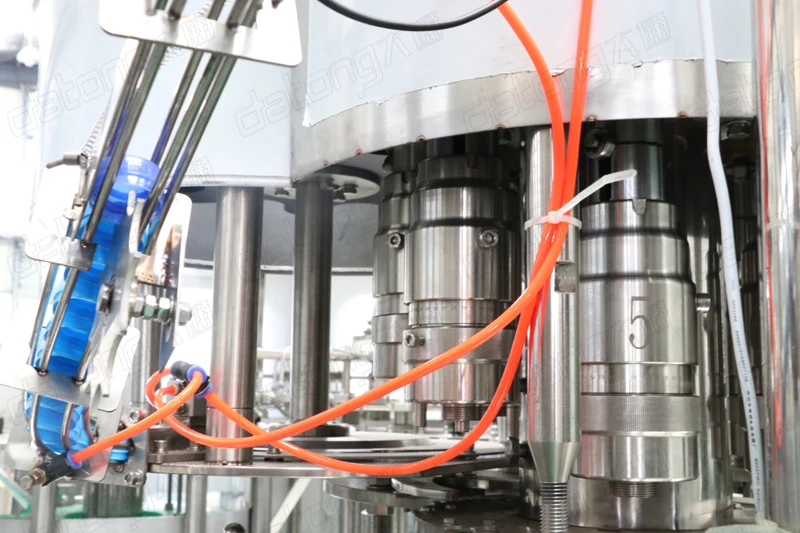

Capping Parts

The capping machine can cap different kinds of bottles, it is reliable, easy to operate and easy to maintain. It are widely used in wines, food, drinks, medicine, chemicals, reagents, pesticides and automatic packing etc. It is the most popular rotary screw automatic folding capper.

Our Service

Before Sales
Answer your any question on us with in 24 hours.
Supply all information you required.
Machines video for reference.
Welcome to visit factory.

After Sales
Update production progress each week.
Sending machines pictures on production .
Machines testing running over 8 hours, and sending testing videos. 4.engineer arranged to install machines.
Spare Parts provided.
